What You'll Learn in this codelab:
- Multiple levels at which you can manage state in your Flutter apps
- Using StatefulWidgets and the setState method to trigger changes
- Using ValueNotifier and ValueListenableBuilder
- Sharing data between widgets
- Triggering rebuilds on one widget from another widget
- "Lifting the State" using Provider
- Leveraging more than one service using MultiProvider
- Communication between provided services
- Listening to changes and rebuilding using ChangeNotifierProvider and ChangeNotifier services in conjunction with Consumer widgets
- A computer with a browser
- An internet connection
First things first, let's set up our project by importing the required packages (we'll be using the material package for simplicity).
Add the main method, which wraps the runApp, which will load the root widget of our app, the MaterialApp widget. Set the debugShowCheckedModeBanner to false and set as the home property a new widget we'll be creating called MyApp:
import 'package:flutter/material.dart';
void main() {
runApp(
MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
);
}
Now create a custom widget called MyApp as a StatelessWidget.
StatelessWidgets are the most basic type of widgets you can build on your own, and they do nothing more than describe part of the user interface by building a constellation of other widgets under it that describe the user interface more concretely, creating a hierarchy.
Your custom StatelessWidget should returns the following:
- a Scaffold widget
- a Center widget as the body of the Scaffold
- a widget called MyWidget as the child of the Center widget
Your MyApp widget should look like this:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
body: Center(
child: MyWidget(),
),
);
}
}
Still the MyWidget doesn't exist, so let's make it also as a StatelessWidget. A StatelessWidget doesn't maintain any state - its contents are pretty much rendered once on the screen and don't change at all. Let's build this widget as a very simple widget that contains the following:
- an internal property called count, type int, with an initial value of 0.
- a Column widget with a mainAxisSize of MainAxisSize.min.
- as the column's children, a simple Text widget with the content "Hello World, $count!" (notice the interpolated value in the string) and style it using the inherited text theme of headline4.
Your code should look as follows:
class MyWidget extends StatelessWidget {
final int count = 0;
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'Hello, World, $count!',
style: Theme.of(context).textTheme.headline4,
)
]
);
}
}
Nothing exciting about this widget; it just renders the string "Hello World, 0!" on the screen - that's all it does. If you run this through DartPad, you will see the following:
Now, with that in place, let's start diving into State Management, shall we?
Complete Code for this step
import 'package:flutter/material.dart';
void main() {
runApp(
MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
);
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
body: Center(
child: MyWidget(),
),
);
}
}
class MyWidget extends StatelessWidget {
final int count = 0;
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'Hello, World, $count!',
style: Theme.of(context).textTheme.headline4,
)
]
);
}
}
StatefulWidgets, in contrast with StatelessWidgets, maintain state between widget rebuilds in a separate class called State. State is information that (1) can be read synchronously when the widget is built and (2) might change during the lifetime of the widget. It is the responsibility of the widget implementer to ensure that the State is promptly notified when such state changes, using State's method setState.
Let's now turn our StatelessWidget MyWidget into a StatefulWidget.
Start by replacing StatelessWidget by StatefulWidget from the extends clause in the MyWidget class, and override the createState method, which creates the widget's corresponding state. Name it by convention MyWidgetState, as such:
class MyWidget extends StatefulWidget {
@override
MyWidgetState createState() => MyWidgetState();
}
Then, create the corresponding state class (MyWidgetState) and move both the build method and the count property to this new class; remove the final attribute from the count property as the state will modify it now.
Your updated class from StatelessWidget to StatefulWidget should look like this:
class MyWidget extends StatefulWidget {
@override
MyWidgetState createState() => MyWidgetState();
}
class MyWidgetState extends State<MyWidget> {
int count = 0;
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'Hello, World, $count!',
style: Theme.of(context).textTheme.headline4,
)
]
);
}
}
Now let's bring in some interactivity.
Add a TextButton widget to the Column widget, under the Text widget, with the following specs:
- a Text widget as its direct child, with the label "Click me to update!"
- an onPressed event; inside this event, then call the setState method, available to the State, and inside of which you'll increment the count by one everytime someone presses it.
Your updated MyWidgetState class should look like this:
class MyWidgetState extends State<MyWidget> {
int count = 0;
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'Hello, World, $count!',
style: Theme.of(context).textTheme.headline4,
),
TextButton(
onPressed: () {
setState(() {
count++;
});
},
child: const Text('Click me to update!')
)
]
);
}
}
Running this code through DartPad should get you the following output:
And this is pretty much what happens:
Upon calling setState on the State class after updating the count property, this notifies the framework that the widget needs to rebuild itself in order to reflect the changed occurred on the state; Flutter then calls the widget's build method and the UI gets repainted with the update.
Complete Code for this section
import 'package:flutter/material.dart';
void main() {
runApp(
MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
);
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
body: Center(
child: MyWidget(),
),
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
const MyChildWidget({ this.onWidgetClicked });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: const Text('Click me to update!')
);
}
}
class MyWidget extends StatefulWidget {
@override
MyWidgetState createState() => MyWidgetState();
}
class MyWidgetState extends State<MyWidget> {
int count = 0;
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'Hello, World, $count!',
style: Theme.of(context).textTheme.headline4,
),
TextButton(
onPressed: () {
setState(() {
count++;
});
},
child: const Text('Click me to update!')
)
]
);
}
}
Right now I showed you how you trigger the widget rebuild by calling setState from inside the same widget, but what if you want to trigger the setState from a child down the hierarchy (i.e. a child widget)?
One way to do it is using a callback method that you feed into your child widget, which will trigger the connected event up the hierarchy.
So this is what we'll try to accomplish:
Let's create a new custom widget called MyChildWidget that extends Stateless (this one won't persist any state, just trigger an event up the chain) with the following specs:
- a constructor parameter type Function called onWidgetClicked, which will serve as the function pointer we'll be passing down to this widget for it to be invoked
- move the TextButton from the MyWidget to this MyChildWidget's build method. Inside the onPressed event, call the onWidgetClicked callback.
Your newly created widget should look like this:
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
const MyChildWidget({ this.onWidgetClicked });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: const Text('Click me to update!')
);
}
}
Now go back to the MyWidget widget class, and right where the TextButton was, now add our newly created widget MyChildWidget, and while instantiating it, hook up a callback to its onWidgetClicked constructor parameter. Inside, then is when you'll call the setState method to increment the count property.
Your updated MyWidget class should look like this:
class MyWidgetState extends State<MyWidget> {
int count = 0;
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'Hello, World, $count!',
style: Theme.of(context).textTheme.headline4,
),
MyChildWidget(
onWidgetClicked: () {
setState(() {
count++;
});
}
)
]
);
}
}
Recap: We created a new widget called MyChildWidget which is a child of the MyWidget widget. We pass into it a callback method via the onWidgetClicked parameter. From inside the MyChildWidget, on the TextButton's onPressed method, we invoke this function, which calls up to the parent and on behalf of itself it triggers the setState method.
This causes a chain reaction, causing the whole hierarchy (including the MyChildWidget) to rebuild, because it is a child of the parent widget MyWidget which just got rebuilt.
If you run this on DartPad you should not be seeing any differences in behavior, all we're doing is calling the setState method from inside the hierarchy.
This approach is not recommended as you can easily fall into the "callback-hell" trap, so avoid it, or use it with caution and consciously.
Confirm that the state is encapsulated to the MyWidget widget
Now let's prove that the state within a StatefulWidget instance is encapsulated within itself and not shared across several instances.
Let's refactor our structure to add more than one MyWidget instance.
Back to our MyApp widget, replace the body of the Scaffold (currently a Center widget that encloses our MyWidget) by a Column widget with two equaly spaced out regions (using Expanded widgets), each of which encapsulates a Center widget with our MyWidget widget inside, as such:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
body: Column(
children: [
Expanded(
child: Center(
child: MyWidget()
)
),
Expanded(
child: Center(
child: MyWidget()
)
),
]
),
);
}
}
Run this through DartPad and you should have the following output:
Notice how each state is maintained separate per widget, not colliding with each other and encapsulated within itself. Neat!
Cool, but what if now I want to share the same state across both widget instances, so they both know about the same count, and be able to incrementally in a coordinated fashion? Let's see that on our next step.
Complete Code for this step
import 'package:flutter/material.dart';
void main() {
runApp(MyApp());
}
class MyApp extends StatelessWidget {
final ValueNotifier<int> count = ValueNotifier(0);
@override
Widget build(BuildContext context) {
return MaterialApp(
debugShowCheckedModeBanner: false,
home: Scaffold(
body: Column(
children: [
Expanded(
child: Center(
child: MyWidget(count: count)
)
),
Expanded(
child: Center(
child: MyWidget(count: count)
)
),
]
),
),
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
const MyChildWidget({ this.onWidgetClicked });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: const Text('Click me to update!')
);
}
}
class MyWidget extends StatefulWidget {
final ValueNotifier? count;
const MyWidget({ this.count });
@override
MyWidgetState createState() => MyWidgetState();
}
class MyWidgetState extends State<MyWidget> {
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
ValueListenableBuilder(
valueListenable: widget.count!,
builder: (context, value, child) {
return Text(
'Hello, World, $value!',
style: Theme.of(context).textTheme.headline4,
);
}
),
MyChildWidget(
onWidgetClicked: () {
setState(() {
widget.count!.value++;
});
}
)
]
);
}
}
Now we'll explore the concept of "lifting the state". As you may have noticed in the previous sections, the state is encapsulated within each widget via their corresponding State classes, which persists the values they are interested in preserving across multiple widget rebuilds. This time we will take out the state from inside the widget and "elevate" it, or "lift" it to a higher level, that way multiple widgets can access it, as opposed to being encapsulated, or trapped within a single widget, hence the term "lift".
For this we will use some constructs provided by Flutter out of the box called ValueNotifier and the ValueListenableBuilder widget.
ValueNotifier is class that holds a single value; when its value is replaced with something that is not equal to the old value, this class notifies any entity that is listening, thus causing an action, such as rebuilding.
One companion widget to the ValueNotifier is the ValueListenableBuilder, which as the name implies, it "listens" for a value, and when it changes, it rebuilds its contents. This class automatically registers itself as a listener to a ValueListenable (i.e. a ValueNotifier object) and call its corresponding builder method with updated values when the value changes.
Let's see a schematic of how we'll do it as a way to lift the state out of the MyWidget widget:
Now let's do some refactoring. We won't be using StatefulWidgets anymore as the state won't be encapsulated within a single widget. We'll move the state to a higher level, from the MyWidget widget to the MyApp widget, that way the app can serve the listener down the hierarchy.
Updating the MyWidget widget
Let's start from the MyWidget widget.
Make them back into a StatelessWidget by removing the MyWidgetState class portion and rename it back to MyWidget.
Create a final property called count, type ValueNotifier of type int and its corresponding constructor. This means we'll be feeding a ValueNotifier instance to be listened to.
final ValueNotifier<int>? count;
const MyWidget({ this.count });
Inside the build method, wrap the existing Text widget inside a ValueListenableBuilder, type int, with the following attributes:
- valueListenable: the ValueListenable instance (in our case, a ValueNotifier - count)
- builder: the callback that will be triggered upon changes to the count ValueNotifier
ValueListenableBuilder<int>(
valueListenable: count!,
builder: (context, value, child) {
return Text(
'Hello, World, $value!',
style: Theme.of(context).textTheme.headline4,
);
}
)
Inside the MyChildWidget's onWidgetClicked method, get rid of the setState call, and instead, just increment the value property of the count ValueNotifier, which will increment its value and thus notify any listener about the change:
MyChildWidget(
onWidgetClicked: () {
count!.value++;
}
)
The whole updated MyWidget class should look like this:
class MyWidget extends StatelessWidget {
final ValueNotifier<int>? count;
const MyWidget({ this.count });
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
ValueListenableBuilder<int>(
valueListenable: count!,
builder: (context, value, child) {
return Text(
'Hello, World, $value!',
style: Theme.of(context).textTheme.headline4,
);
}
),
MyChildWidget(
onWidgetClicked: () {
count!.value++;
}
)
]
);
}
}
Updating the MyApp Widget
Let's go back now up to the MyApp widget, and create a new final property, called count type ValueNotifier type int, initialized to 0:
final ValueNotifier<int> count = ValueNotifier(0);
Now, inside the body, go to each MyWidget instance and feed this count ValueNotifier to each of those instances via their constructor, as such:
Expanded(
child: Center(
child: MyWidget(count: count)
)
)
The whole updated MyApp class should look like this:
class MyApp extends StatelessWidget {
final ValueNotifier<int> count = ValueNotifier(0);
@override
Widget build(BuildContext context) {
return Scaffold(
body: Column(
children: [
Expanded(
child: Center(
child: MyWidget(count: count)
)
),
Expanded(
child: Center(
child: MyWidget(count: count)
)
)
]
),
);
}
}
Running this through DartPad, now notice how by clicking on either one of the widgets, the value changes on both sides, keeping both widgets in sync; this means both are able to listen to the same value, and respond to changes triggered by either one of them. Pretty cool!
Complete Code for this section
import 'package:flutter/material.dart';
void main() {
runApp(
MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
);
}
class MyApp extends StatelessWidget {
final ValueNotifier<int> count = ValueNotifier(0);
@override
Widget build(BuildContext context) {
return Scaffold(
body: Column(
children: [
Expanded(
child: Center(
child: MyWidget(count: count)
)
),
Expanded(
child: Center(
child: MyWidget(count: count)
)
)
]
),
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
const MyChildWidget({ this.onWidgetClicked });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: const Text('Click me to update!')
);
}
}
class MyWidget extends StatelessWidget {
final ValueNotifier<int>? count;
const MyWidget({ this.count });
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
ValueListenableBuilder<int>(
valueListenable: count!,
builder: (context, value, child) {
return Text(
'Hello, World, $value!',
style: Theme.of(context).textTheme.headline4,
);
}
),
MyChildWidget(
onWidgetClicked: () {
count!.value++;
}
)
]
);
}
}
Now that we've decoupled our state from the widgets that consume it, what if now I want to lift the state waaaaaaayyyy higher, let's say I want to share it across pages? That'd be pretty cool, that way the values can be shared not only across a handful of widgets but the whole application! Here comes Provider to the rescue!
Provider is a simple app state management approach that allows you to decouple the business logic that powers your application from the UI rendering logic that makes Flutter such an amazing framework to build dynamic and fluid UIs. Read up more on Provider to get more info.
This functionality is conveniently packaged into a single package called provider, and in essence is nothing more than a wrapper around InheritedWidget, InheritedNotifier and InheritedModel, and more.
This is what we'll be accomplishing by using the Provider:
Creating the Service
First off, we'll be creating a class that will hold the values that we're interested in persisting outside of the widgets and across widget rebuilds. For this, you just create a regular class with properties in it - we'll call it ValueService as it will be serving the purpose of encapsulating not only values, but functionality - sort of like a service, being "provided" by the application.
Whenever any interested entity down the hierarchy wants to have access to it, it uses the provided BuildContext from the framework, and search up the hierarchy until it finds the first reference of the provided service, using the Provider.of utility method to fetch it, provided the type of instance, the context, and an optional listen flag, as in:
ValueService valueService = Provider.of<ValueService>(context);
Let's start!
Import the required package (provider) at the top of the file:
import 'package:provider/provider.dart';
Create the ValueService class that will hold our value:
class ValueService {
int count = 0;
}
Now, let's refactor the main method. Wrap the existing Material app widget inside the runApp method inside a Provider, with the following specs:
- set its create property to be a callback that returns an instance of the service to be provided (in our case, ValueService)
- child: The child that will serve as the starting point through which the instance of the provided services will be tricked down, in our case the MaterialApp, as below:
void main() {
runApp(
Provider(
create: (_) => ValueService(),
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
Updating the MyWidget widget
Let's clean up in here and get rid of the ValueNotifier called count altogether, along with its corresponding constructor parameter.
Instead, in order to differentiate the widget, let's add a label property, type String that will hold the label for the widget so we can uniquely identify it and make it more reusable.
final String? label;
const MyWidget({ this.label });
Inside the build method, since this is a descendant widget, you can access the provided service at the top by using the supplied BuildContext and using the Provider.of utility method to pull the service, as such:
ValueService valueService = Provider.of<ValueService>(context, listen: false);
Now that a reference to the service has been fetched, let's consume it. Replace the ValueListenableBuilder from the widget structure (we don't need it anymore) and replace it by just the Text widget that is inside of it. Replace the content of the Text widget by the provided label and interpolate the value from the service in the string, as shown below:
Text(
'${label!}, ${valueService.count}',
style: Theme.of(context).textTheme.headline4,
),
Next, inside the MyChildWidget's callback method onWidgetClicked(), is where now we'll update the value of count from the ValueService reference by incrementing it:
MyChildWidget(
onWidgetClicked: () {
valueService.count++;
}
)
Now this widget is ready to engage with the provided service. We'll come back in just a minute to do some additional adjustments, but for now we're all set.
Updated full MyWidget widget should look like this:
class MyWidget extends StatelessWidget {
final String? label;
const MyWidget({ this.label });
@override
Widget build(BuildContext context) {
var valueService = Provider.of<ValueService>(context, listen: false);
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'${label!}, ${valueService.count}',
style: Theme.of(context).textTheme.headline4,
),
MyChildWidget(
onWidgetClicked: () {
valueService.count++;
}
)
]
);
}
}
Updating the MyApp widget
With that in place, let's go back up to the MyApp widget, and update the MyWidget instances by supplying a unique label to each; to the top MyWidget instance, set the label property to "Top Widget", and to the second one set it to "Bottom Widget", as such:
Expanded(
child: Center(
child: MyWidget(
label: 'Top Widget')
)
),
Expanded(
child: Center(
child: MyWidget(
label: 'Bottom Widget')
)
),
Updated MyApp widget looks like this:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
body: Column(
children: [
Expanded(
child: Center(
child: MyWidget(
label: 'Top Widget')
)
),
Expanded(
child: Center(
child: MyWidget(
label: 'Bottom Widget')
)
),
]
),
);
}
}

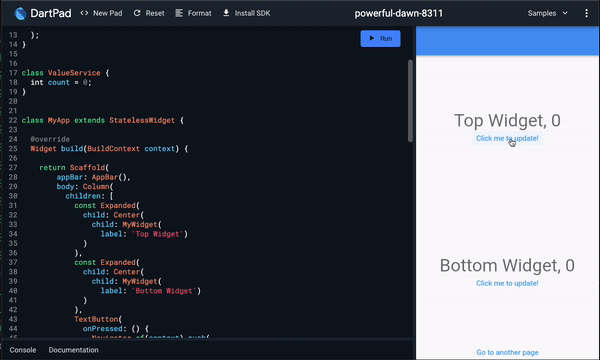

Now, run it through DartPad to see what this does:
Uh-oh, something is broken!
Not really - we are just not listening to the changes that are being set on the count property, and no one is notifying of those changes. And since this page didn't rebuild based on those changes being made, we don't see the updates.
Let's do an experiment to test.
Add an additional page
We'll add a separate page, from where we'll access the provided service ValueService after the changes have been made.
Create a widget class called NextPage with the following content:
class NextPage extends StatelessWidget {
@override
Widget build(BuildContext context) {
var valueService = Provider.of<ValueService>(context, listen: false);
return Scaffold(
appBar: AppBar(),
body: Center(
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
Text('This the value on another page!'),
Text('${valueService.count}',
style: Theme.of(context).textTheme.headline4
)
],
)
)
);
}
}
Notice how in the build method I'm pulling the provided service ValueService and consuming the count value from it. I'm also adding an AppBar widget to the Scaffold widget so I have the ability to go back to the page we navigate from.
Now, go back to the MyApp page, and under the two MyWidget widgets, let's add another TextButton widget to allow us to navigate to that other page we created.
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
Also add an AppBar widget to the Scaffold widget. The updated MyApp widget class should look like this:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
Now, let's give it another shot. Let's do it again. Click on the "Click me to update!" button on both widgets. Click 2 times on the top widget, 2 times on the bottom widget, for a total of 4. Now, navigate to the NextPage widget by clicking on the newly added TextButton that says "Go to another page". And there you should see a value of 4 under the label "This is the value on another page!".
So just to recap - the Provider allows you to hold values for you in memory and makes them available to all descendants of the providing widget, but does not notify of any changes. We'll look into widgets that do broadcast or "notify" listeners, which then rebuild to reflect the changes made.
Complete Code for this section
import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
void main() {
runApp(
Provider(
create: (_) => ValueService(),
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
class ValueService {
int count = 0;
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(),
body: Column(
children: [
Expanded(
child: Center(
child: MyWidget(
label: 'Top Widget')
)
),
Expanded(
child: Center(
child: MyWidget(
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
class NextPage extends StatelessWidget {
@override
Widget build(BuildContext context) {
var valueService = Provider.of<ValueService>(context, listen: false);
return Scaffold(
appBar: AppBar(),
body: Center(
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
Text('This is the value on another page!'),
Text('${valueService.count}',
style: Theme.of(context).textTheme.headline4
)
],
)
)
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
const MyChildWidget({ this.onWidgetClicked });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: const Text('Click me to update!')
);
}
}
class MyWidget extends StatelessWidget {
final String? label;
const MyWidget({ this.label });
@override
Widget build(BuildContext context) {
var valueService = Provider.of<ValueService>(context, listen: false);
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'${label!}, ${valueService.count}',
style: Theme.of(context).textTheme.headline4,
),
MyChildWidget(
onWidgetClicked: () {
valueService.count++;
}
)
]
);
}
}
We saw the benefits of lifting up the state to a much higher level by using the Provider approach, and we noticed how we were able to access provided services not just within a widget, but within even separate pages. But we didn't get notified of changes as soon as they happened - instead only at first build of a widget when it pulls the initial values.
For that, there are two constructs that provide the capability to notify listeners on values changing, and widgets that respond to those changes by rebuilding themselves - sort of like the ValueNotifier and ValueListenableBuilder (which would also be used within this context, but only on a single value). If you want to apply this concept at a class-wide level, you should create a class that extends from ChangeNotifier.
ChangeNotifier is a class that can be extended or mixed in that provides a change notification API using VoidCallback for notifications, and it is provided just like the Provider, but using another construct called ChangeNotifierProvider.
Let's make some changes to our code.
At the top of the code, replace Provider by ChangeNotifierProvider:
void main() {
runApp(
ChangeNotifierProvider(
create: (_) => ValueService(),
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
Go to the ValueService class and let's make the following changes:
- make the ValueService class extend ChangeNotifier. This is the class that gives it the broadcasting / notification capabilities to notify whoever is listening so as to update itself. It has a special method called notifyListeners which does exactly as its name implies.
Instead of just being a plain property called count, make a getter and a setter around that property. Inside its setter method, right after setting its value, call the notifyListeners() inherited method.
Your updated class should look as follows:
class ValueService extends ChangeNotifier {
int _count = 0;
int get count => _count;
set count(int value) {
_count = value;
notifyListeners();
}
}
Now, every time someone attempts to set the value of count, this will call its internal notifyListeners method, and whoever is consuming this service, will trigger either its build method, or in the special widgets, its builder callback method.
Now, in order to consume this newly provided service, there's a special widget that does just that - the Consumer widget, whose only job is to listen to changes on the consumed service in question and runs its builder method.
Let's go back to the MyWidget widget and do some refactoring.
Remove the provided service ValueService instance at the top of the build method. Wrap the returned Column inside a Consumer widget of type ValueService with the following specs:
- set the Consumer of type ValueService
- on its builder method, set the 3 required parameters: a context of type BuildContext, the provided service ValueService, and a child Widget, for optimization purposes. Return the existing Column structure out of this builder method.
The updated MyWidget widget should look like this:
class MyWidget extends StatelessWidget {
final String? label;
const MyWidget({ this.label });
@override
Widget build(BuildContext context) {
return Consumer<ValueService>(
builder: (context, valueService, child) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'${label!}, ${valueService.count}',
style: Theme.of(context).textTheme.headline4,
),
MyChildWidget(
onWidgetClicked: () {
valueService.count++;
}
)
]
);
},
);
}
}
Let's try the same exercise as before; this time since are using the Consumer widget that listens to the ValueService, and this service notifies all its listeners and instructs them to rebuild, now we should see the change occur in real time.
Notice how all widgets are in sync, even when you navigate to another page, come back, etc. How cool is that!
Now you can even create other widgets that consume this same service in a variety of ways. The code below shows a new custom widget called NotificationWidget that shows a badge notification on the AppBar widget in the MyApp widget:
class NotificationWidget extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Container(
height: 60,
margin: const EdgeInsets.only(right: 10),
child: Row(
children: [
const Icon(
Icons.notifications,
color: Colors.white,
size: 25
),
Container(
height: 30,
padding: const EdgeInsets.only(left: 10, right: 10),
alignment: Alignment.center,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(20),
color: Colors.red
),
child: Consumer<ValueService>(
builder: (context, vService, child) {
return Text(vService.count.toString());
}
)
)
]
)
);
}
}
Grab this widget and place it on the MyAppBar, inside the Scaffold's AppBar, as a children of its actions property, as such:
Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: // ... rest of the code omitted for brevity
}
Updated MyApp code should look as follows:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
color: Colors.green,
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
color: Colors.purple,
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
Run it on DartPad, and click on the buttons in any of the MyWidget widgets, notice the new NotificationWidget at the top right corner, listening to the same changes the other widgets are:
Complete code for this section
import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
void main() {
runApp(
ChangeNotifierProvider(
create: (_) => ValueService(),
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
class ValueService extends ChangeNotifier {
int _count = 0;
int get count => _count;
set count(int value) {
_count = value;
notifyListeners();
}
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
class NextPage extends StatelessWidget {
@override
Widget build(BuildContext context) {
var valueService = Provider.of<ValueService>(context, listen: false);
return Scaffold(
appBar: AppBar(),
body: Center(
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
const Text('This is the value on another page!'),
Text('${valueService.count}',
style: Theme.of(context).textTheme.headline4
)
],
)
)
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
const MyChildWidget({ this.onWidgetClicked });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: const Text('Click me to update!')
);
}
}
class MyWidget extends StatelessWidget {
final String? label;
const MyWidget({ this.label });
@override
Widget build(BuildContext context) {
return Consumer<ValueService>(
builder: (context, valueService, child) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'${label!}, ${valueService.count}',
style: Theme.of(context).textTheme.headline4,
),
MyChildWidget(
onWidgetClicked: () {
valueService.count++;
}
)
]
);
},
);
}
}
class NotificationWidget extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Container(
height: 60,
margin: const EdgeInsets.only(right: 10),
child: Row(
children: [
const Icon(
Icons.notifications,
color: Colors.white,
size: 25
),
Container(
height: 30,
padding: const EdgeInsets.only(left: 10, right: 10),
alignment: Alignment.center,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(20),
color: Colors.red
),
child: Consumer<ValueService>(
builder: (context, vService, child) {
return Text(vService.count.toString());
}
)
)
]
)
);
}
}
Of course the mayority of the apps out there rely on more than just a single service; services encapsulate business logic that shouldn't live on the widget classes, and this promotes a good separation of concerns. Services are usually divided by features, functionality or app domains, and just a simple way on your path to achieving a clean architecture and good distribution of your code.
In this section we'll do more than one service, just to illustrate our point.
Instead of providing a single service to the descendants of this app, we'll add an additional service. There's no limit in how many services you can provide down the hierarchy.
Let's create a new class called ColorService, which will also extend ChangeNotifier. This service will be provided to the descendants but only consumable by the NotificationWidget as it will be used to change the color on the notification badge programmatically. Add the following properties:
- a propery called color with a getter and a setter, with a default color of Colors.red. Make sure to call notifyListeners upon setting the color:
class ColorService extends ChangeNotifier {
Color _color = Colors.red;
Color get color => _color;
set color(Color value) {
_color = value;
notifyListeners();
}
}
Now, how do we add more than one ChangeNotifierProvider at the top of our hierarchy so they trickle down? Using another special widget called MultiProvider which does just that: provides multiple providers down the hierarchy.
Wrap the whole MaterialApp widget inside a MultiProvider widget, set the MaterialApp as the child of this widget.
For its providers property, set both ValueService and now the ColorService wrapped inside ChangeNotifierProviders, as the below updated void main method illustrates:
void main() {
runApp(
MultiProvider(
providers: [
ChangeNotifierProvider(
create: (_) => ValueService()
),
ChangeNotifierProvider(
create: (_) => ColorService()
)
],
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
And as simple as that, you are all set, ready to consume this newly provided service.
Down on the NotificationWidget, let's consume this service.
Inside its build method, wrap the existing Consumer<ValueService> service in yet another consumer that listens to the ColorService. Set the color of the existing Container widget to the color that comes from the ColorService supplied to this Consumer, as such:
Consumer<ColorService>(
builder: (context, cService, child) {
return Container(
height: 30,
padding: const EdgeInsets.only(left: 10, right: 10),
alignment: Alignment.center,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(20),
color: cService.color
),
child: Consumer<ValueService>(
builder: (context, vService, child) {
return Text(vService.count.toString());
}
)
);
}
)
Now we need to provide the way to change the value of the color in this service.
Let's refactor the MyWiget widget, to now not only take a label but a Color parameter, that way each widget has a unique way to set the color of the NotificationWidget badge.
Add a Color property, called color; add its corresponding constructor parameter:
final String? label;
final Color? color;
const MyWidget({ this.label, this.color });
Add an additional custom button using the MyChildWidget custom widget and providing a label and a callback for its onWidgetClicked event; inside this callback, invoke the ColorService by pulling it using the Provider.of, then setting its color value based on the supplied color property, as such:
MyChildWidget(
label: "Click to update color",
onWidgetClicked: () {
var colorService = Provider.of<ColorService>(context, listen: false);
colorService.color = color!;
}
)
Updated MyWidget widget class should mimic this one:
class MyWidget extends StatelessWidget {
final String? label;
final Color? color;
const MyWidget({ this.label, this.color });
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Consumer<ValueService>(
builder: (context, vService, child) {
return Text(
'${label!}, ${vService.count}',
style: Theme.of(context).textTheme.headline4,
);
}
),
MyChildWidget(
label: "Click to update number!",
onWidgetClicked: () {
var valueService = Provider.of<ValueService>(context, listen: false);
valueService.count++;
}
),
MyChildWidget(
label: "Click to update color",
onWidgetClicked: () {
var colorService = Provider.of<ColorService>(context, listen: false);
colorService.color = color!;
}
)
]
);
}
}
Back on the MyApp, populate the newly created constructor parameter to the MyWidget widgets by passing a color (i.e. green for the top widget, purple for the second widget):
const Expanded(
child: Center(
child: MyWidget(
color: Colors.green,
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
color: Colors.purple,
label: 'Bottom Widget')
)
),
Updated MyApp widget should look like the code below:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
color: Colors.green,
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
color: Colors.purple,
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
Now let's repeat the exercise and tap on the newly provided buttons to trigger a change in the notification badge color:
Complete code for this section
import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
void main() {
runApp(
MultiProvider(
providers: [
ChangeNotifierProvider(
create: (_) => ValueService()
),
ChangeNotifierProvider(
create: (_) => ColorService()
)
],
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
class ValueService extends ChangeNotifier {
int _count = 0;
int get count => _count;
set count(int value) {
_count = value;
notifyListeners();
}
}
class ColorService extends ChangeNotifier {
Color _color = Colors.red;
Color get color => _color;
set color(Color value) {
_color = value;
notifyListeners();
}
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
color: Colors.green,
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
color: Colors.purple,
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
class NextPage extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(),
body: Center(
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
const Text("This is another page!"),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => MyApp())
);
},
child: const Text('Go to the First Page again!')
)
],
)
)
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
final String? label;
const MyChildWidget({ this.onWidgetClicked, this.label });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: Text(label!)
);
}
}
class MyWidget extends StatelessWidget {
final String? label;
final Color? color;
const MyWidget({ this.label, this.color });
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Consumer<ValueService>(
builder: (context, vService, child) {
return Text(
'${label!}, ${vService.count}',
style: Theme.of(context).textTheme.headline4,
);
}
),
MyChildWidget(
label: "Click to update number!",
onWidgetClicked: () {
var valueService = Provider.of<ValueService>(context, listen: false);
valueService.count++;
}
),
MyChildWidget(
label: "Click to update color",
onWidgetClicked: () {
var colorService = Provider.of<ColorService>(context, listen: false);
colorService.color = color!;
}
)
]
);
}
}
class NotificationWidget extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Container(
height: 60,
margin: const EdgeInsets.only(right: 10),
child: Row(
children: [
const Icon(
Icons.notifications,
color: Colors.white,
size: 25
),
Consumer<ColorService>(
builder: (context, cService, child) {
return Container(
height: 30,
padding: const EdgeInsets.only(left: 10, right: 10),
alignment: Alignment.center,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(20),
color: cService.color
),
child: Consumer<ValueService>(
builder: (context, vService, child) {
return Text(vService.count.toString());
}
)
);
}
)
]
)
);
}
}
Sometimes you want to consolidate all actions inside a single service; there are cases in which a combined set of features is required to complete a given task. Instead of putting all functionality inside the same service for the sake of convenience, it is best to keep related functionality separate, but only tap into the required functionality when needed.
For that, we will create a common service, called CombinedService that actually pulls all available services and tap into their functionality without them having to know about each other, keeping the separation of concerns pristine and decoupled.
Create a new class called CombinedService which will serve as the proxy to call the other services. Inside this class, we'll create a method called setBothColorAndValue, with the following specs:
- add the required parameters to set a color and a value, as well as a BuildContext parameter; we will need this to pull the services out of the Provider.
Your new class' code should look like this:
class CombinedService {
void setBothColorAndValue(BuildContext context, Color c, int v) {
var colorService = Provider.of<ColorService>(context, listen: false);
var valueService = Provider.of<ValueService>(context, listen: false);
colorService.color = c;
valueService.count = v;
}
}
Refactor the main method by adding a new provided service, wrapping our new CombinedService class inside a Provider; this one will trigger other services, so no need to be a ChangeNotifierProvider:
Provider(
create: (_) => CombinedService()
)
Your updated main method should look like this:
void main() {
runApp(
MultiProvider(
providers: [
ChangeNotifierProvider(
create: (_) => ValueService()
),
ChangeNotifierProvider(
create: (_) => ColorService()
),
Provider(
create: (_) => CombinedService()
)
],
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
Now let's add the functionality to trigger this action.
Back on the MyApp widget, add a new TextButton under the second MyWidget widget wrapped by an Expanded. This button will require the context of the current page widget, and we'll pass an orange color, as well as the fixed value of 100. When the user taps on this button, this service will call the two other services (ValueService and ColorService), each of which in turn will execute their corresponding actions, notify listeners and rebuild accordingly.
Your new button should look like this:
TextButton(
onPressed: () {
var combinedService = Provider.of<CombinedService>(context, listen: false);
combinedService.setBothColorAndValue(context, Colors.orange, 100);
},
child: const Text('Change Both')
),
Updated MyApp widget should look like this:
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
color: Colors.green,
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
color: Colors.purple,
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
var combinedService = Provider.of<CombinedService>(context, listen: false);
combinedService.setBothColorAndValue(context, Colors.orange, 100);
},
child: const Text('Change Both')
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
Following the same exercise and tapping on our newly added button to change both color and value from a combined service that taps into other services should yield the following output on DartPad:
And with that, we are fully done with this workshop! Kudos to you for making it all the way to the end; although we went through some simple examples, these strategies can be utilized in production-level and enterprise-level apps, both small and large, while at the same time promoting good code distribution, separation of concerns and a clean architecture runway.
Thanks again and hope you've learned a lot from this experience.
See you on the next one!
In this codelab, we accomplished the following:
- Multiple levels at which you can manage state in your Flutter apps
- Using StatefulWidgets and the setState method to trigger changes
- Using ValueNotifier and ValueListenableBuilder
- Sharing data between widgets
- Triggering rebuilds on one widget from another widget
- "Lifting the State" using Provider
- Leveraging more than one service using MultiProvider
- Communication between provided services
- Listening to changes and rebuilding using ChangeNotifierProvider and ChangeNotifier services in conjunction with Consumer widgets
Please don't forget to follow me on social media:
- On Twitter (@drcoderz)
- On YouTube (Roman Just Codes)
- On My Personal Portfolio
- On Medium
- On LinkedIn
import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
void main() {
runApp(
MultiProvider(
providers: [
ChangeNotifierProvider(
create: (_) => ValueService()
),
ChangeNotifierProvider(
create: (_) => ColorService()
),
Provider(
create: (_) => CombinedService()
)
],
child: MaterialApp(
debugShowCheckedModeBanner: false,
home: MyApp()
)
)
);
}
class ValueService extends ChangeNotifier {
int _count = 0;
int get count => _count;
set count(int value) {
_count = value;
notifyListeners();
}
}
class ColorService extends ChangeNotifier {
Color _color = Colors.red;
Color get color => _color;
set color(Color value) {
_color = value;
notifyListeners();
}
}
class CombinedService {
void setBothColorAndValue(BuildContext context, Color c, int v) {
var colorService = Provider.of<ColorService>(context, listen: false);
var valueService = Provider.of<ValueService>(context, listen: false);
colorService.color = c;
valueService.count = v;
}
}
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
actions: [
NotificationWidget()
]
),
body: Column(
children: [
const Expanded(
child: Center(
child: MyWidget(
color: Colors.green,
label: 'Top Widget')
)
),
const Expanded(
child: Center(
child: MyWidget(
color: Colors.purple,
label: 'Bottom Widget')
)
),
TextButton(
onPressed: () {
var combinedService = Provider.of<CombinedService>(context, listen: false);
combinedService.setBothColorAndValue(context, Colors.orange, 100);
},
child: const Text('Change Both')
),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => NextPage())
);
},
child: const Text('Go to another page')
)
]
),
);
}
}
class NextPage extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(),
body: Center(
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
const Text("This is another page!"),
TextButton(
onPressed: () {
Navigator.of(context).push(
MaterialPageRoute(builder: (context) => MyApp())
);
},
child: const Text('Go to the First Page again!')
)
],
)
)
);
}
}
class MyChildWidget extends StatelessWidget {
final Function? onWidgetClicked;
final String? label;
const MyChildWidget({ this.onWidgetClicked, this.label });
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () {
onWidgetClicked!();
},
child: Text(label!)
);
}
}
class MyWidget extends StatelessWidget {
final String? label;
final Color? color;
const MyWidget({ this.label, this.color });
@override
Widget build(BuildContext context) {
return Column(
mainAxisSize: MainAxisSize.min,
children: [
Consumer<ValueService>(
builder: (context, vService, child) {
return Text(
'${label!}, ${vService.count}',
style: Theme.of(context).textTheme.headline4,
);
}
),
MyChildWidget(
label: "Click to update number!",
onWidgetClicked: () {
var valueService = Provider.of<ValueService>(context, listen: false);
valueService.count++;
}
),
MyChildWidget(
label: "Click to update color",
onWidgetClicked: () {
var colorService = Provider.of<ColorService>(context, listen: false);
colorService.color = color!;
}
)
]
);
}
}
class NotificationWidget extends StatelessWidget {
@override
Widget build(BuildContext context) {
return Container(
height: 60,
margin: const EdgeInsets.only(right: 10),
child: Row(
children: [
const Icon(
Icons.notifications,
color: Colors.white,
size: 25
),
Consumer<ColorService>(
builder: (context, cService, child) {
return Container(
height: 30,
padding: const EdgeInsets.only(left: 10, right: 10),
alignment: Alignment.center,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(20),
color: cService.color
),
child: Consumer<ValueService>(
builder: (context, vService, child) {
return Text(vService.count.toString());
}
)
);
}
)
]
)
);
}
}
